Oracle APEX native Box Plot charts, using Oracle JET Data Visualizations, are showcased on this page. The Box Plot chart is useful for reading statistical data, and follows a specific formula for representing the data on the chart.


How to Read a Box Plot chart

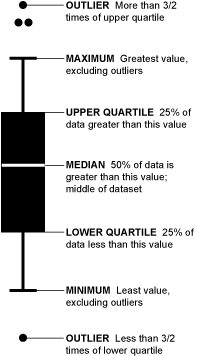

Review the image explaining the sections of a Box Plot chart. Here are the main components of a Box Plot:

  • High/Maximum Value
  • 1st Quartile - i.e. the 25% percentile of data. This means that 25% of the data are below this value.
  • Median/2nd Quartile - middle of the dataset i.e 50% of the data is greater than this value.
  • 3rd Quartile - i.e. the 75% percentile of data. This means that 25% of the data are above this value.
  • Low/Minimum Value
  • Outliers - values that fall outside of the quartile ranges. The Upper Outliers are more than 3/2 of the 3rd Quartile. The Lower Outliers are less than 3/2 times the 1st Quartile.

Survey Results

Samples Report Data

Sample1
Sample2
Sample3
Sample4
Sample5
7.8711-113.19
7.9812.6-12.6-
8.199.22-9.22-
8.320.97-20.9715.16
8.4716.6-16.6-

Information

The underlying table structure is not normalised, storing the results of each new sample in a new column. This structure may be common to some customers, so this example demonstrates how to generate a Box Plot on such a table structure. This chart also uses the 'Series Name' column mapping, to treat each row returned as a separate series, thus applying a different colour to each series represented on the chart.

The sample data used here has been obtained from an external Box Plot utility site.

Survey Results - Normalised Tables

The underlying table structure is normalised, storing the results of each new sample in one column, identified by a unique ID. This example demonstrates how to generate a Box Plot on such a table structure.

Survey Sample Data - Time Axis

The underlying table structure is normalised, storing the results of each new sample in one column, identified by a unique ID date. This example demonstrates how to generate a Box Plot, with Time Axis enabled.

Grades - Single Series

Grades - Multi-Series

Grades - Mixed Series Types

The visibility of the joined line will only work when there is 1 x 'Box Plot' series defined for the given chart. Where there is more than 1 series of type 'Box Plot', alongside a 'Line' series, then the line will not be joined.

Grades - Custom Q2 & Q3 Colours

The Q2 and Q3 segments of the Box Plot can have custom colours defined, via columns of the series SQL query. The Q2 Color and Q3 Color series-level attributes reference the columns using &COLUMN_VALUE. syntax. Where those series-level attribute are not set, then the default series colour will be applied to them. The y-axis Format has also be set, to apply formatting to the values rendered in the tooltip - without decimal places.
